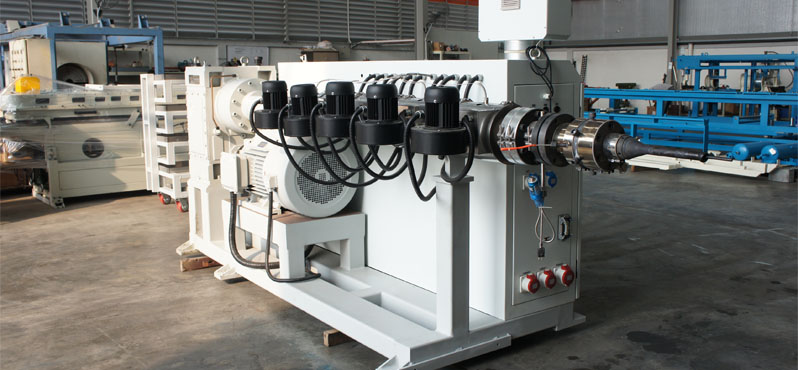

Extruder Single Screw - LUMEN
Extruder Single Screw - LUMEN
TECHNICAL SPECIFICATIONS
| MODEL | LUMEN 25LD25 | LUMEN 30LD30 | LUMEN 45LD30 | LUMEN 45LD33 | LUMEN 50LD30 | LUMEN 60LD33 | LUMEN 65LD33 | LUMEN 65LD33 | LUMEN 65LD33 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Screw Diameter | 25mm | 30mm | 45mm | 45mm | 50mm | 60mm | 65mm | 65mm | 65mm | |
| Max. Speed (rpm) | HDPE | 12/24 | 150 | 150 | 150 | 120 | 120 | 90 | 120 | 150 |
| Barrel Heater (kW) | 3 | 9 | 11,0 | 10 | 15,0 | 20,0 | 18 | 20,0 | 18 | |
| Barrel Cooling Zone | 3 | 3 | 3 | 4 | 3 | 4 | 5 | 4 | 5 | |
| Motor Drive (kW) | 1.1/1.5 | 4 | 4 | 30 | 11 | 37 | 45 | 45 | 75 | |
| Tooling Die Zone | 2 | 3 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | |
| Throughput (kg/h) | HDPE | 1/2 | 18 | 25 | 80 | 35 | 80 | 120 | 150 | 250 |
| MODEL | LUMEN 70LD33 | LUMEN 75LD33 | LUMEN 80LD33 | LUMEN 90LD33 | LUMEN 90LD33 | LUMEN 110LD33 | LUMEN 120LD33 | LUMEN 130LD33 | LUMEN 150LD33 | LUMEN 150LD33 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Screw Diameter | 70mm | 75mm | 80mm | 90mm | 90mm | 110mm | 120mm | 130mm | 150mm | 150mm | |
| Max. Speed (rpm) | HDPE | 110 | 120 | 100 | 95 | 120 | 95 | 90 | 95 | 90 | 120 |
| Barrel Heater (kW) | 24,0 | 22 | 30,0 | 40,0 | 28 | 55,0 | 56 | 65,0 | 90 | 90 | |
| Barrel Cooling Zone | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 6 | 6 | |
| Motor Drive (kW) | 60 | 110 | 75 | 90 | 160 | 110 | 280 | 132 | 315 | 400 | |
| Tooling Die Zone | 6 | 9 | 8 | 8 | 9 | 8 | 9 | 10 | 12 | 12 | |
| Throughput (kg/h) | HDPE | 200 | 350 | 350 | 420 | 500 | 500 | 800 | 600 | 1000 | 1200 |
We deserve the right to amend any specifications without notice due to new development.
