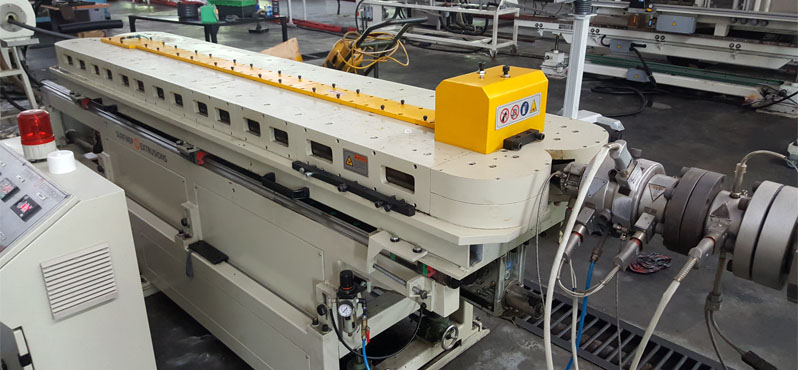

TECHNICAL SPECIFICATIONS : SINGLE WALL CORRUGATOR MACHINE
| MODEL | No. of Blocks | Pipe Diam. Range | Motor (kw) | Lubrication Pump (kw) | Water Pressure | Water Temp. | Production Speed | Forming Mode | Cooling Mode |
|---|---|---|---|---|---|---|---|---|---|
| SMFC 50/72 | 72 | 20 - 50 | 3 | 0.12 | 1 bar | 18 Deg C | 20m/min | Air Blow | Water |
| SMFC 50/90 | 90 | 20 - 50 | 4 | 0.12 | Cooled |
PULVERISER
| MODEL | Output kg/hr | Motor (kw) | Disc Diam. (mm) | Rotor knife | Station knife | Disc Speed (rpm) | Blower (kw) | Sieve (kw) | Material Seperator |
|---|---|---|---|---|---|---|---|---|---|
| SMTM 500 | 150 | 37 | 500 | 24 | 12 | 3800 | 4 | 0.75 | 0.75 |
| SMPM 500 | 300 | 55 | 500 | 50 | 50 | 4000 | 5.5 | 1.5 | 0.75 |
Remarks : Output base on 40 Mesh and grinding knife made of S7K-11
