MODEL	SMBM-160 SMRBM-160	SMBM250 SMRBM250	SMBM400 SMRBM400	SMBM630 SMRBM630	SMBM1000 SMRBM1000
Diameter (mm)	40 - 160	50 - 250	160 - 400	315 - 630	500 - 1000
Pipe Length (m)	3 - 8	3 - 8	4 - 8	4 - 8	6 - 8
Hydraulic Pressure	5 bar	6.3 bar	6.3 bar	8.0 bar	8.0 bar
Comp. Air Pressure	6 bar	6 bar	6 bar	6 bar	6 bar
Water Pressure	4 bar	4 bar	4 bar	4 bar	4 bar
Total Power (kw)	18	18	25	32	50
Total Weight (kg)	2300	2500	3000	3500	8000
Size (L x W x H )	7000 x 1530 x 1963	7300 x 1730 x 1950	7900 x 2140 x 2125	8423 x 2970 x 2650	10000 x 4600 x 2570
Production Speed	45s - 500s	50s - 600s	60s - 900s	150s - 1200s	500s - 2500s
Forming Mode	With pressurized cylinder ( or vacuum pump ) and expandable belling moulds
Cooling Mode	Water - Cooled
Mandrel Material	Made of 3Cr13 for Collapsible Core and 40Cr for Die Block
Type	BM model capable to form Bellmount (Mechanical Mandrel) , Plain Socket and Non Socket RBM model capable to form Rieber Socket, Plain Socket and Non Socket

We deserve the right to amend any specifications without notice due to new development.

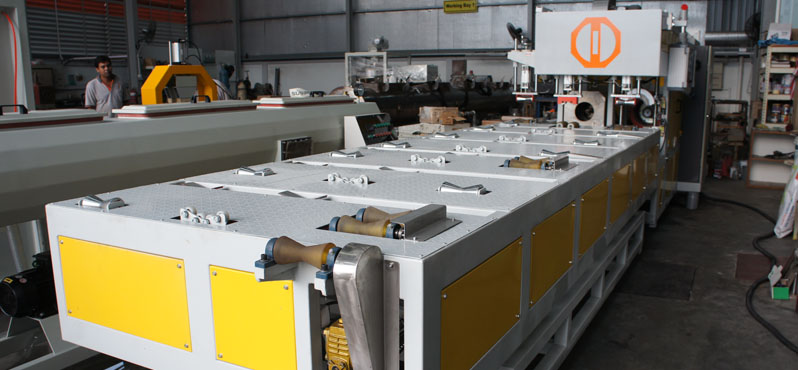

Belling Machine
