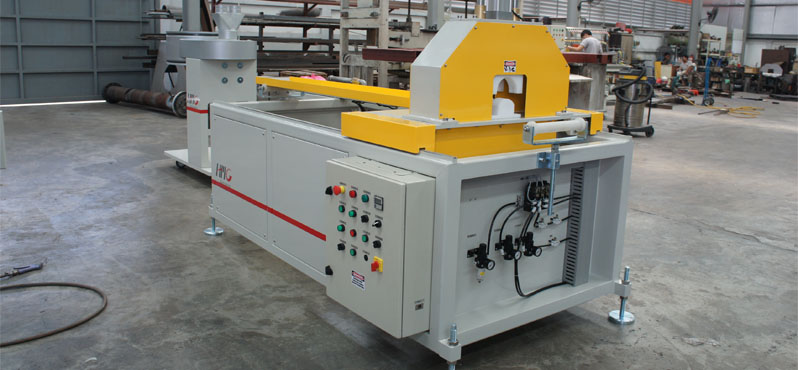

Saw-Off
Saw-Off
TECHNICAL SPECIFICATIONS : SAWS STRAIGHT CUTTING - Pipes / Profiles
| MODEL | Pipe Range (mm) | Profile Size (mm) | Motor (kw) | Cutting Type ( Fr Bottom Up ) | Travel Length (mm) | Dimension (mm) | Centre Height (mm) |
|---|---|---|---|---|---|---|---|
| SMCS 75 | 15 - 75 | 100 x 80 | 1.5 | Saw Cut | 1500 | 1700x1000x1300 | 1000-1100 |
| SMCS 110 | 20 -110 | 120 x 100 | 2.2 | Saw Cut | 1500 | 2200x1000x1550 | 1000-1100 |
| SMCS 160 | 32 - 160 | 180 x 160 | 3.7 | Saw Cut | 1800 | 2200x1000x1550 | 1000-1100 |
PLANETARY CUTTING UNITS
| MODEL | Pipe Range (mm) | Motor (kw) | Travel Type | Travel Motor (kw) | Travel Length (mm) | Dimension (mm) | Centre Height (mm) |
|---|---|---|---|---|---|---|---|
| SMPCS 160 | 50 - 160 | 2.2 | Pneumatic | 0.55 | 1800 | 2200x1000x1550 | 1000 - 1100 |
| SMPCS 250 | 90 - 250 | 2.2 | Motorised | 0.55 | 1800 | 2600x1500x1700 | 1000 - 1100 |
| SMPCS 315 | 110 - 315 | 2.2 | Motorised | 0.75 | 1800 | 3400x1700x1920 | 1100 - 1200 |
| SMPCS 500 | 160 - 500 | 3.7 | Motorised | 0.75 | 1500 | 2200x1000x1550 | 1100 - 1200 |
| SMPCS 630 | 315 - 630 | 3.7 | Motorised | 0.75 | 1500 | 3800x2400x2200 | 1100 - 1200 |
SWARFLESS CUTTING UNITS - Polyolefine Pipes
| MODEL | Pipe Range (mm) | Motor (kw) | Travel Type | Saw Arm Powered by | Travel Length (mm) | Dimension (mm) | Centre Height (mm) |
|---|---|---|---|---|---|---|---|
| SMSCS 63 | 20 - 63 | 1.5 | Pneumatic | Pneumatic | 1500 | 1600x1000x1300 | 1000 - 1100 |
| SMSCS 110 | 20 -110 | 1.5 | Pneumatic | Pneumatic | 1500 | 2000x1000x1500 | 1000 - 1100 |
| SMSCS 160 | 63 - 160 | 3 | Pneumatic | Pneumatic | 1800 | 2200x1000x1550 | 1000 - 1100 |
| SMSCS 250 | 90 - 250 | 4 | Pneumatic | Hydraulics | 1800 | 3200x1700x1920 | 1000 - 1100 |
| SMSCS 315 | 110 - 315 | 4 | Pneumatic | Hydraulics | 1800 | 3400x1700x1920 | 1100 - 1200 |
| SMSCS 500 | 160 - 500 | 5.5 | Pneumatic | Hydraulics | 1800 | 2200x1000x1550 | 1000 - 1200 |
| SMSCS 630 | 315 - 630 | 5.5 | Pneumatic | Hydraulics | 1800 | 3800x2400x2200 | 1100 - 1200 |
HIGH SPEED FLY CUTTER - Pipes
| MODEL | Pipe Range (mm) | Motor (kw) | Travel Type | Saw Arm Powered by | Travel Length (mm) | Speed (m/min) | Centre Height (mm) |
|---|---|---|---|---|---|---|---|
| SMFCS 63 | 15 - 63 | 1.5 | Servo Drive | Hydro Pneumatic | 1800 | 30 | 1000 - 1100 |
| SMFCS 160 | 50 - 160 | 2.2 | Servo Drive | Hydro Pneumatic | 1800 | 20 | 1000 - 1100 |
We deserve the right to amend any specifications without notice due to new development.
