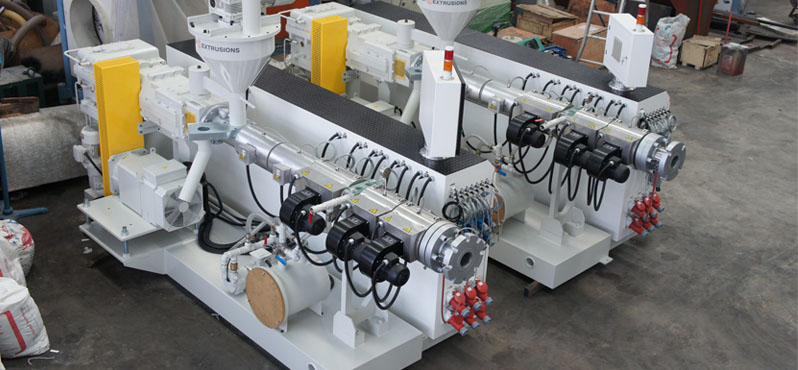

EXTRUDER PARALLEL TWIN SCREW
Extruder Parallel Twin Screw
TECHNICAL SPECIFICATIONS
| MODEL | SMTPX 54LD28 |
SMTPX 65LD22 |
SMTPX 68LD28 |
SMTPX 90LD22 |
SMTPX 92LD28 |
SMTPX 110LD28 |
SMTPX 132LD28 |
|---|---|---|---|---|---|---|---|
| Screw Counter Rotating | 54mm 28 LD |
65mm 22 LD |
68mm 28 LD |
90mm 22 LD |
92mm 28 LD |
110mm 28 LD |
132mm 28 LD |
| Max. Speed (rpm) | 54mm | 50mm | 50mm | 42mm | 45mm | 36mm | 28mm |
| Torque (Nm) | 3500 | 4200 | 5800 | 8400 | 15500 | 24000 | 37500 |
| Barrel Heater (kW) | 17,0 | 18,5 | 30,0 | 41,0 | 45,0 | 50,0 | 55,0 |
| Barrel Cooling Zone | 2 | 2 | 3 | 3 | 3 | 3 | 3 |
| Motor Drive (kW) | 15 | 22 | 45 | 55 | 75 | 90 | 110 |
| Starve Feeder (kW) | 0,75 | 1,5 | 1,5 | 1,5 | 2,2 | 2,2 | 2,2 |
| Hopper Volume (cm3) | 150 | 180 | 180 | 200 | 200 | 270 | 300 |
| Weight Approx. (kgs) | 1500 | 2200 | 2400 | 3500 | 4500 | 6200 | 9000 |
| Vacuum Pump (kW) | 0,75 | 1,5 | 1,5 | 1,5 | 2,2 | 2,2 | 2,2 |
| Adapter (kW) | 0,75 | 0,75 | 0,75 | 1,0 | 1,0 | 1,0 | 1,0 |
| Tooling Die Zone | 4 | 6 | 8 | 8 | 10 | 12 | 12 |
| Output Pipe (kg/h) | 100 - 150 | 200 - 220 | 300 - 350 | 400 - 450 | 600 - 700 | 800 - 900 | 1100-1200 |
| Output Profile (kg/h) | 80 - 120 | 150 - 180 | 200 - 280 | 250 - 350 | 400 - 450 | - | - |
| Dimension Length (mm) | 2300 | 3100 | 3300 | 3600 | 4200 | 5100 | 5900 |
| Dimension Width (mm) | 1180 | 1300 | 1300 | 1500 | 1500 | 1800 | 2350 |
| Dimension Height (mm) | 2100 | 2300 | 2300 | 2400 | 2400 | 2400 | 2700 |
We deserve the right to amend any specifications without notice due to new development.
