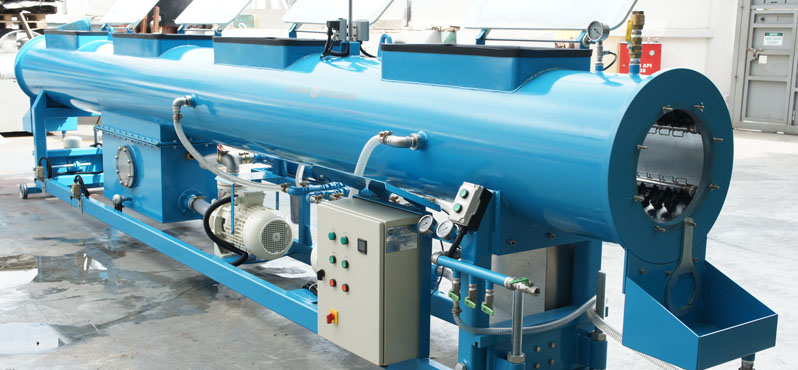

MODEL	SMVST 100	SMVST 160	SMVST 300	SMVST 450	SMVST 630
Pipe Diameter Range (mm)	15 - 110	63 -160	110-300	200-500	315-630
Length of Spray (mm)	6000	6000	6000	6000	6000
No. of Spray Pipes	4	4	4	6	6
Vacuum Pump Capacity (kW)	3 x 1	3.7 x 1	3 x 2	3.7 x 2	5.5 x 2
Water Pump Capacity (kW)	5.5	5.5	7.5	7.5	10
Drive Motor Capacity (kW)	0.75	0.75	1.5	1.5	1.5
Center Height (mm)	1000 -1100	1000 - 1100	1000-1100	1000-1200	1100-1200

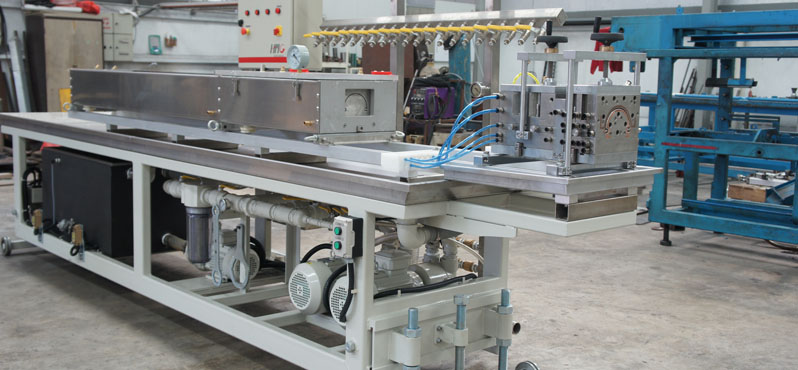

MODEL	SMCT 300	SMCT 500	SMCT 700	SMCT 1000
Length of Spray Tray (mm)	4000	6000	6000	6000
Length of Water Tray (mm)	500	800	1000	1000
Travel Motor	1	1	1	1
Vacuum Pump Capacity (kW)	2.2 x 2	2.2 x 2	4.0 x 2	4.0 x 3
Water Pump Capacity (kW)	1.5 x 1	2.2 x 1	1.5 x 2	2.2 x 2
Hand Wheel for right/left Adjustment	2	2	2	2
Water Nozzles	15	30	40	50
Vacuum Nozzles	15	30	40	50
Height Adjustment (mm) +/- 100	1000	1000	1000	1000
Length (mm)	4000	6000	6000	6000
Width (mm)	450	700	900	1300

We deserve the right to amend any specifications without notice due to new development.

Vacuum Calibration
